Dell™ Latitude™ D610 Service Manual
|
|
NOTICE: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is not covered by your warranty. |
|
|
NOTICE: Unless otherwise noted, each procedure in this document assumes that a part can be replaced by performing the removal procedure in reverse order. |
|

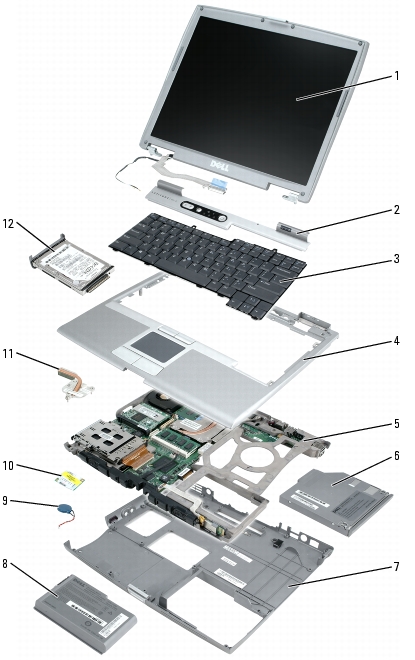

1 |
display assembly |
|
2 |
center control cover |
|
3 |
keyboard |
|
4 |
palm rest |
|
5 |
system board assembly |
|
6 |
optical device |
|
7 |
computer base |
|
8 |
primary battery |
|
9 |
coin-cell battery |
|
10 |
modem |
|
11 |
thermal cooling assembly |
|
12 |
hard drive |
